SPECIFICATIONS

Brand Name: coolo

Certification: CE,RoHS

Choice: yes

Detection Angle: 100°

Detection Range: 5m

High-concerned chemical: none

Model Number: Motion Sensor

Origin: Mainland China

Smart home platform: Tuya

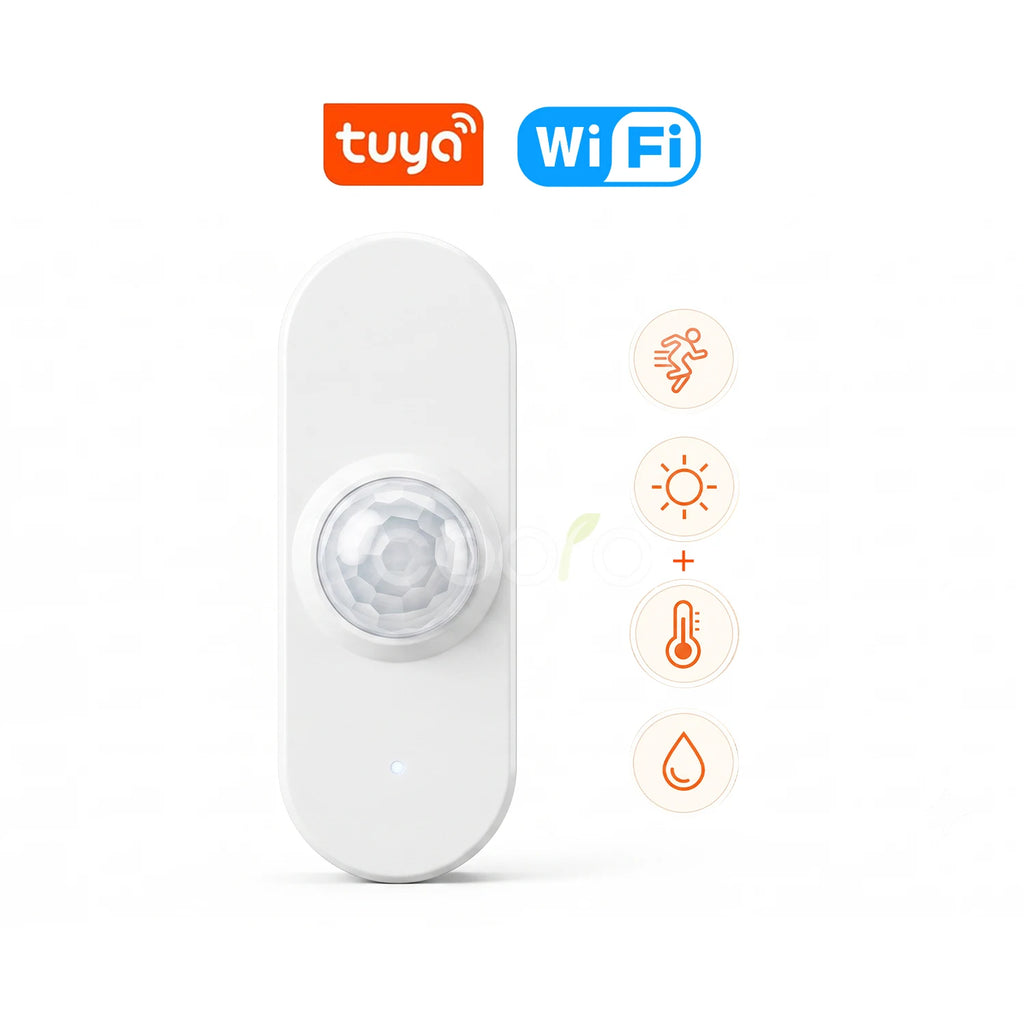

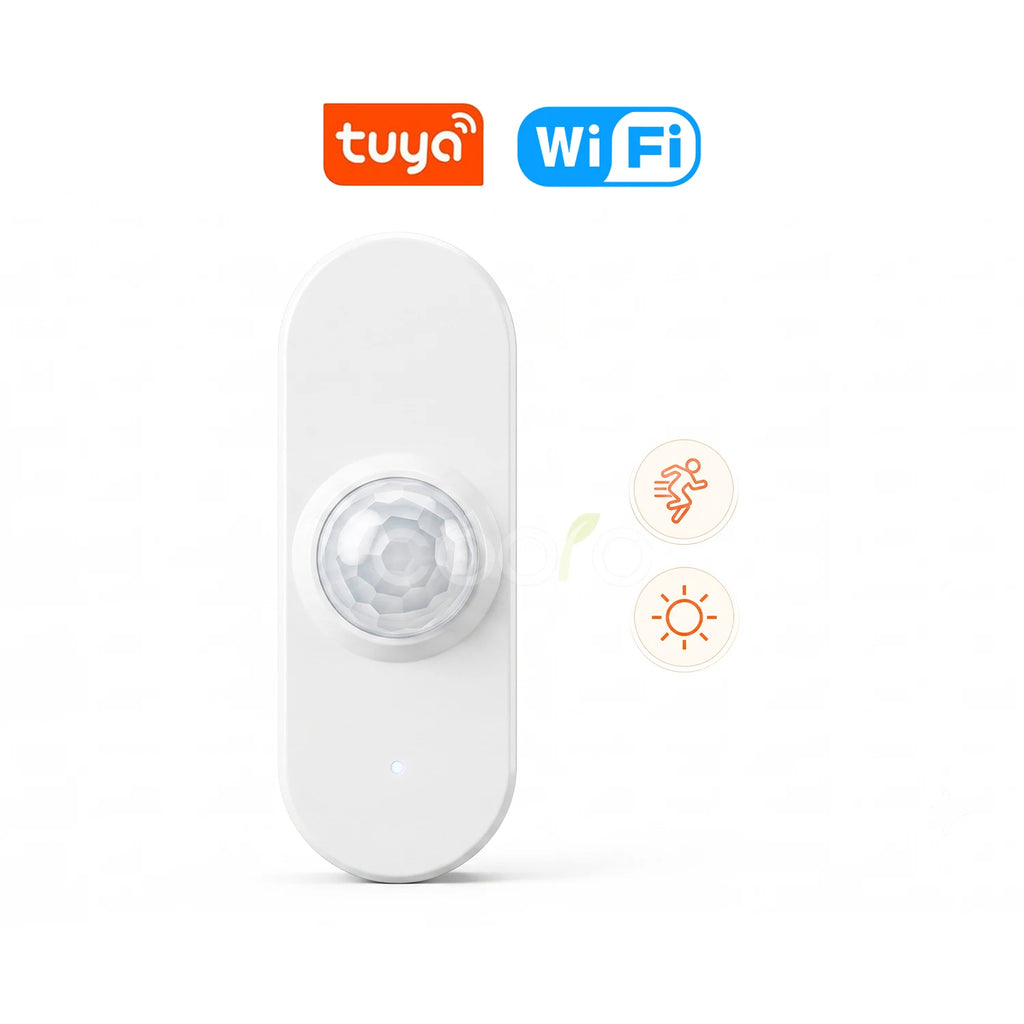

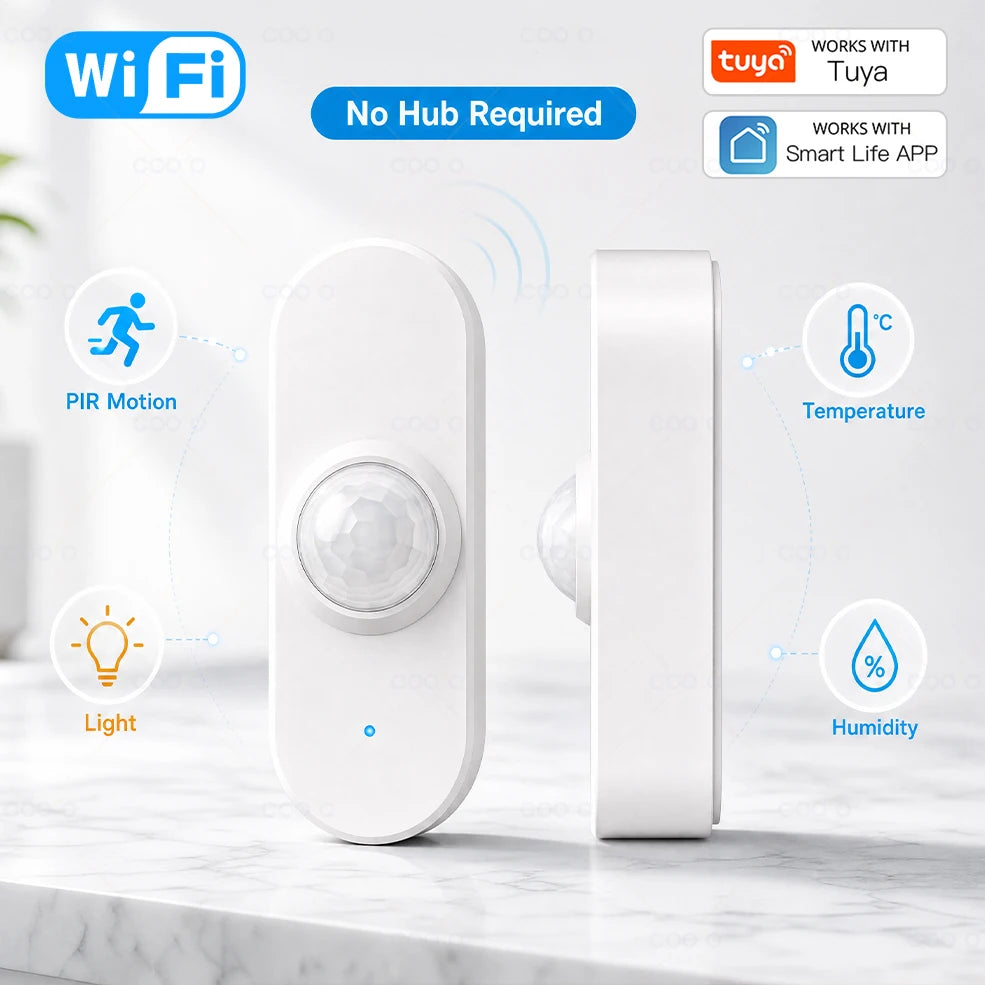

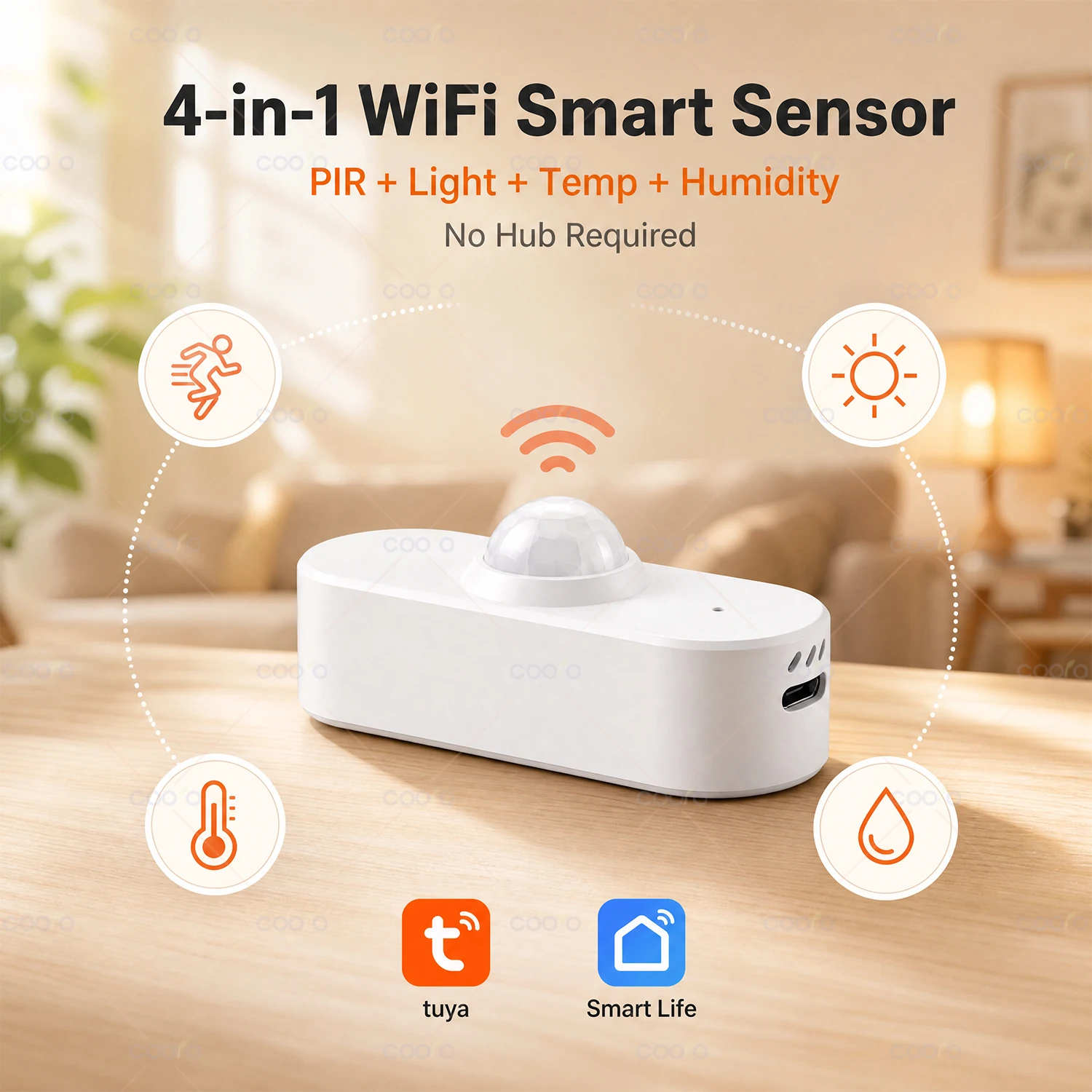

Tuya WiFi Smart 4-in-1 Sensor PIR Motion Detector Light Temperature Humidity Monitor Smart Life App Alexa Google Home Automation

Note: When setting parameters, you must click the "Network Configuration" button on the sensor to enter real-time online mode, and the "Remote Commands" option in the APP settings interface must show "Commands can be issued" before you can set parameters.

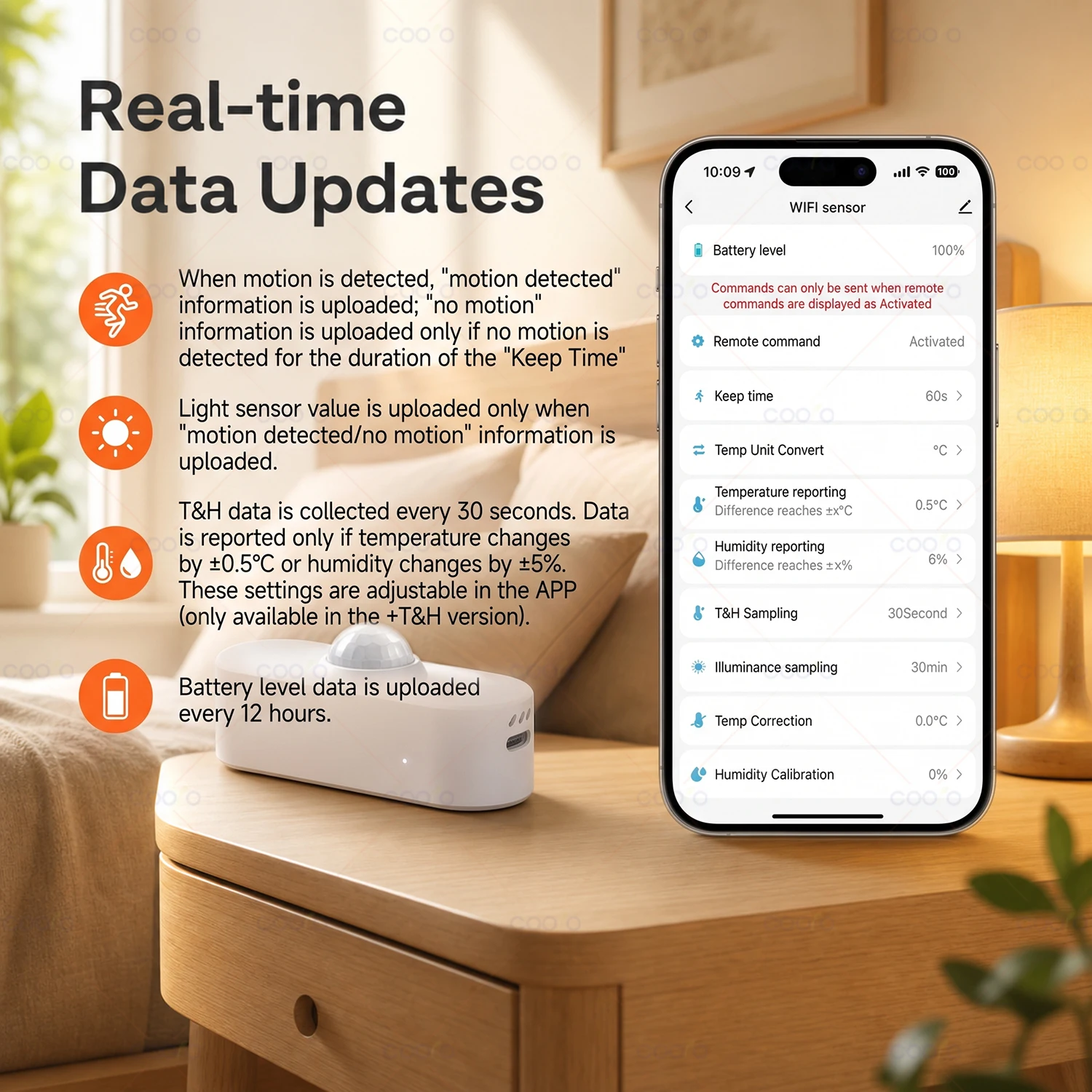

Operating Logic Description:
A: When the sensor detects movement, it uploads "personnel" information; only if no movement is detected within the "personnel presence time" will "no-person" information be uploaded.

B: Light sensor readings are only uploaded when "personnel/no-person" information is being uploaded.

C: Temperature/humidity data is collected every 30 seconds; data is only reported if the temperature is 0.5°C or the humidity is ±5%. This can be configured in the app (this function is only available in the +T&H version).

D: Battery power data is uploaded once every 12 hours.

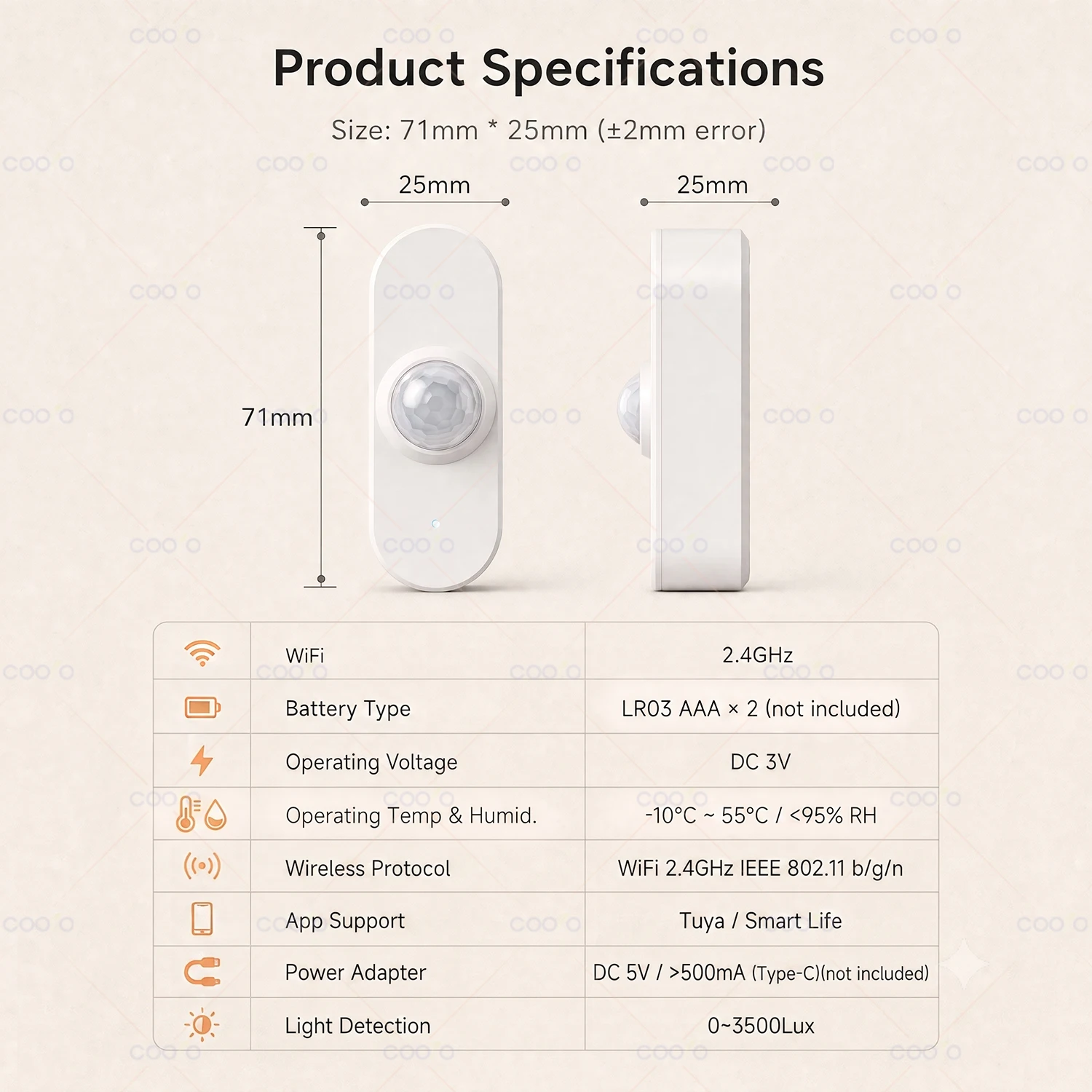

Item: Tuya WiFi PIR Motion Sensor

Working Voltage: DC 3V

Standby Current: <20uA

Wireless Protocol: 2.4GHz WiFi

Detection Angle: ≤100°

Detection Distance: ≤5m

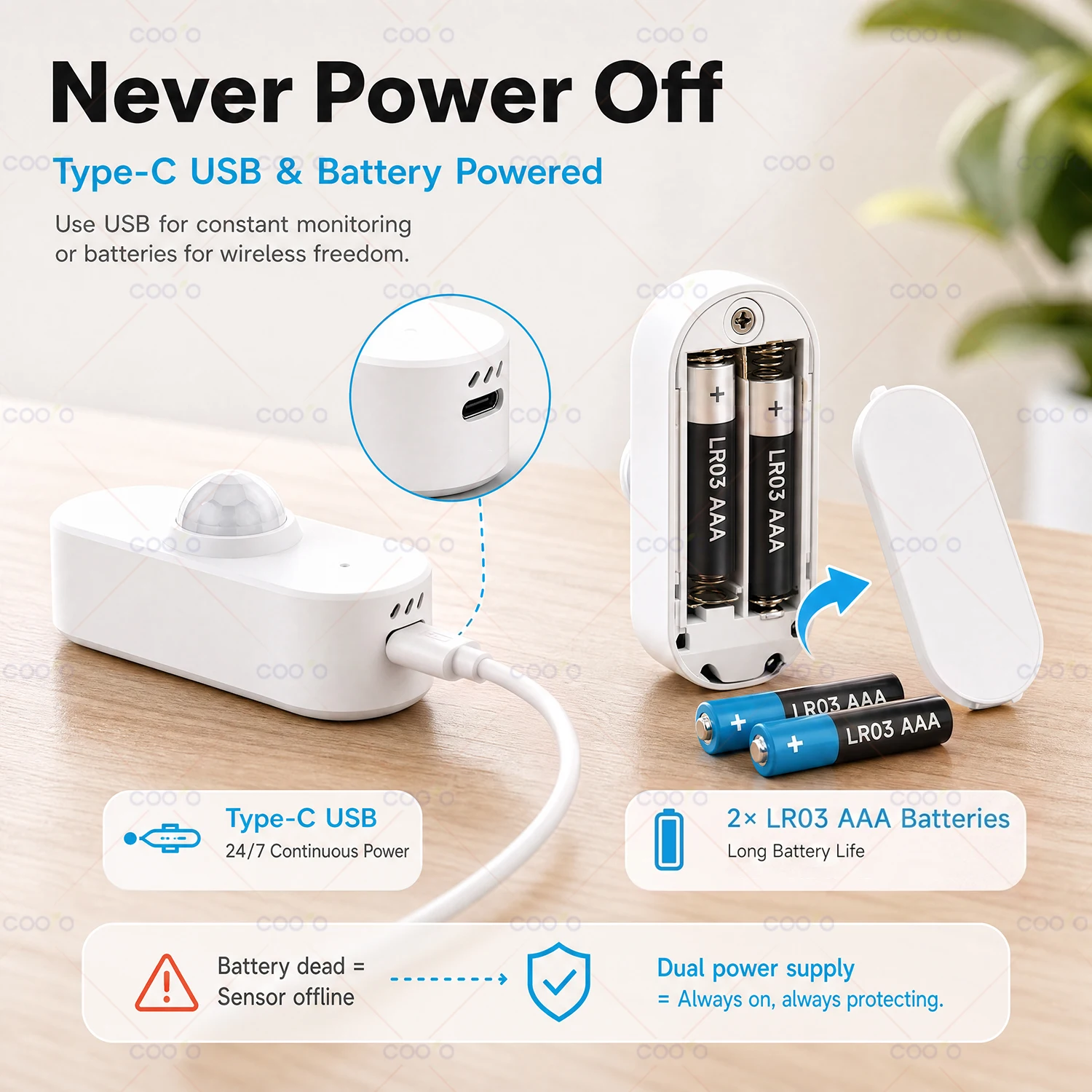

Battery Type: LR03 AAA x 2(not included)

Light Sensor: 0~3500Lux

T&H Sensor: -10°C~55℃/0~99%RH(only for 4 in 1 type)

Working Temperature: -10°C~55℃

Working Humidity: <95%RH

App: Tuya/Smart Life
